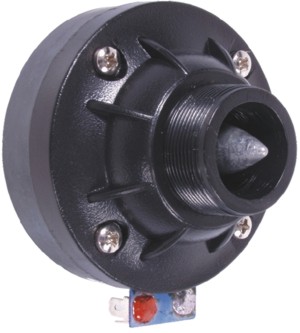

Phenolic Driver DT150 OEM

The Selenium Loudspeakers DT150 OEM is a driver specially designed to offer a smooth extended frequency response over a broad band, from mid to highs with high efficiency. Ideal for compact two way systems that require excellent performance with high power output and superb frequency response.

The magnetic assembly with high flux density is provided by FEA (Finite Element Analisys) software.

The 1” phenolic dome diaphragm is light weight and extremely reliable, covering the frequency range from 1,500 Hz to 15,000 Hz with high fidelity.

The voice coil is made of high temperature wire wound on Nomex former to withstand high operating temperatures.

The DT150 OEM is capable of handling up to 75 watts RMS or 150 watts (Musical Program) if connected to a 12 dB/octave crossover with a 4,000 Hz cut-off frequency.

 General Information

International Audio is your authorized repair center for Selenium Loudspeakers

Where to buy

DT150 OEM

• Specifications:
• Nominal Impedance 8 OHMS
• Power Handling: 80 W (w/ 2,000Hz Crossover) 150 W (w/ 4,000Hz Crossover)
• Sensitivity: 108db 1W/1M
• Frequency Response 1,500Hz-15kHz
• Magnet Weight: 10oz
• Voice Coil 1"
• Gross Weight: 2.41 lbs

More Information - Recommended Accessories

HM17-25 | HM11-25 | HM25-25 | HL14-25 | HC23-25
