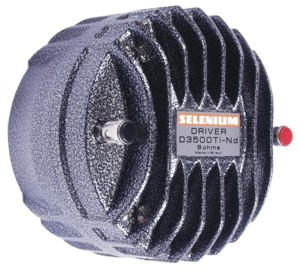

Titanium Driver D3500Ti

Where to buy

The D3500Ti-Nd model is an ultra high quality compression driver for professional use wherever high SPl and low distortion are of great concern. Pure titanium specially designed diaphragm with IPF~ {Impregnated Polymer Fiber) surround, has structured  type snow flake for high sensitivity, low distortion and smooth extended frequency response applications.

The D3500Ti-Nd is recommended for use in arenas, stage monitors, side fills and sound reinforcement systems. Optimized aluminum injected phase plug avoids phase cancellation problems. High flux density magnetic assembly with Neodymium ring and copper shorting ring that lowers distortion and reduces the voice coil self-inductance.

Protection circuit DPD~ {Driver Protection Device ). This circuit uses a PTC and a HPCCR resistor assuring more reliability under overload condition. The flat wire voice coil {copper clad aluminum) uses a high temperature Polyimide former. Precisely engineered diaphragm structure and alignment mechanism allow for easy, reliable and cost effective repair in case of diaphragm failure. In the rare case a repair may be necessary, please read carefully the instructions supplied and be sure to correctly follow the items step by step. If you are not comfortable making the repair, International Audio is your Authorized Repair Facility for the United States.

With a 2" exit throat and standard bolt pattern, it directly couples to Selenium horns with {50 mm) throats. Base and cover are injected aluminum, assuring high mechanical resistance and a very shallow profile.

 General Information

International Audio is your authorized repair center for Selenium Loudspeakers

D3500Ti

• Specifications:
• Nominal Impedance 8 OHMS
• Power Handling: 150 W (w/ 800Hz Crossover)
• Sensitivity: 111db 1W/1M
• Frequency Response 500Hz-25kHz
• Magnet Weight: 21.5oz
• Voice Coil 3"
• Gross Weight: 7.77 lbs
