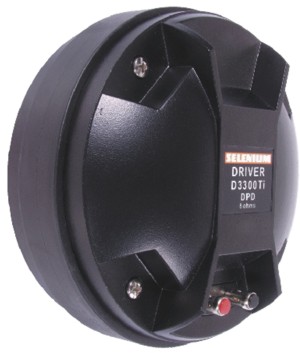

Titanium Driver D3300Ti DPD |
 |
|||||
|
The D3300Ti DPD model From Selenium Loudspeakers is an ultra high quality compression driver for professional use wherever high SPL and low distortion are of great concern. Pure titanium specially designed diaphragm with IPF (Impregnated Polymer Fiber) surround, for high sensitivity, low distortion and smooth extended frequency response applications. The D3300Ti DPD is recommended for use in arenas, stage monitors, side fills and sound reinforcement systems. Optimized aluminum injected phase plug avoids phase cancellation problems. High flux density magnetic assembly with copper shorting ring that lowers distortion and reduces the voice coil self-inductance. Protection circuit DPD (Driver Protection Device). This circuit uses a PTC and a HPCCR resistor assuring more reliability under overload condition. The flat wire voice coil (copper clad aluminum) uses a high temperature Kapton former. Precisely engineered diaphragm structure and alignment mechanism allow for easy, reliable and cost effective repair in case of diaphragm failure. In the rare case a repair may be necessary, please read carefully the instructions supplied and be sure to correctly follow the items step by step. If you are not willing to make the repairs, International Audio is the authorized repair center for the USA. With a 2" exit throat and standard bolt pattern, it directly couples to Selenium horns with (50 mm) throats. Base and cover are injected aluminum, assuring high mechanical resistance and a very shallow profile. Protection circuit DPD (Driver Protection Device). This circuit uses a PTC and a HPCCR resistor assuring more reliability under overload condition. Also available in 16ohm – D3300Ti DPD 16R
|
||||||
|
General Information |
||||||
|
International Audio is your authorized repair center for Selenium Loudspeakers |
D3300Ti DPD
|
|||||
|
More Information - Recommended Accessories |
||||||
| Compatible Horns |
 Manufacturers Tech Data PDF |
|||||
|
|
||||||
|
||||||
